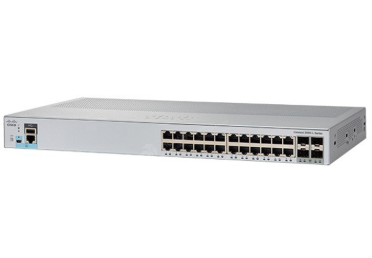

Switch Cisco WS-C2960L-24TS-AP

null"2">

Console Ports

RJ45 Ethernet

1

USB mini-B

1

USB-A port for storage and Bluetooth console

1

Memory and Processor

CPU

ARMv7 800 MHz

DRAM

512 MB

Flash memory

256 MB

Performance

Forwarding bandwidth

28 Gbps

Switching bandwidth

56 Gbps

Forwarding rate (64-byte L3 packets)

41.67 Mpps

Unicast MAC addresses

8K

Connectors and Interfaces

Ethernet interfaces

10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

SFP and SFP+ interfaces

For information about supported SFP/SFP+ modules, refer to the Transceiver Compatibility matrix tables at

cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html

Indicator LEDs

Per-port status: link integrity, disabled, activity, speed, and full duplex

System status: system, PoE, and link speed

Console cables

CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
