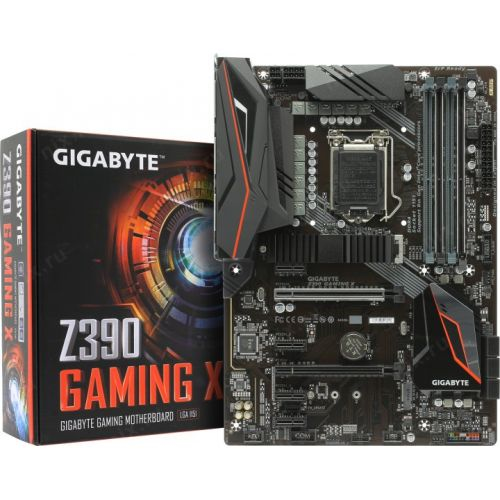

Mainboard Gigabyte Z390 Gaming X

Mã sản phẩm: Z390 Gaming X
Phản hồi khách hàng:

Giá bán tham khảo: Liên hệ 0

Tình trạng hàng: Liên hệ báo giá

Kiểu Sockets Supported: Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Dung lượng bộ nhớ: 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Chipset: Intel® Z390 Express Chipset

Mua ngay Freeship nội thành TP.Hồ Chí Minh

Thông số sản phẩm

Kiểu Sockets Supported	Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Dung lượng bộ nhớ	4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Chipset	Intel® Z390 Express Chipset
Đồ họa	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 4 x PCI Express x1 slots
LAN - WiF	Intel® GbE LAN chip (10/100/1000 Mbit)
Âm thanh	Realtek® ALC892 codec
Operating System Support	Support for Windows 10 64-bit
Cổng I / O phía sau	1 x PS/2 keyboard/mouse port 1 x HDMI port 1 x USB 3.1 Gen 2 Type-A port (red) 5 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
Cổng I/O ở trong	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt™ add-in card connector 1 x serial port header 1 x Clear CMOS jumper
Chuẩn thiết kế ATX	ATX Form Factor; 30.5cm x 22.5cm
Cổng lưu trữ / kết nối	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M) 6 x SATA 6Gb/s connectors
Bảo hành	36 tháng
