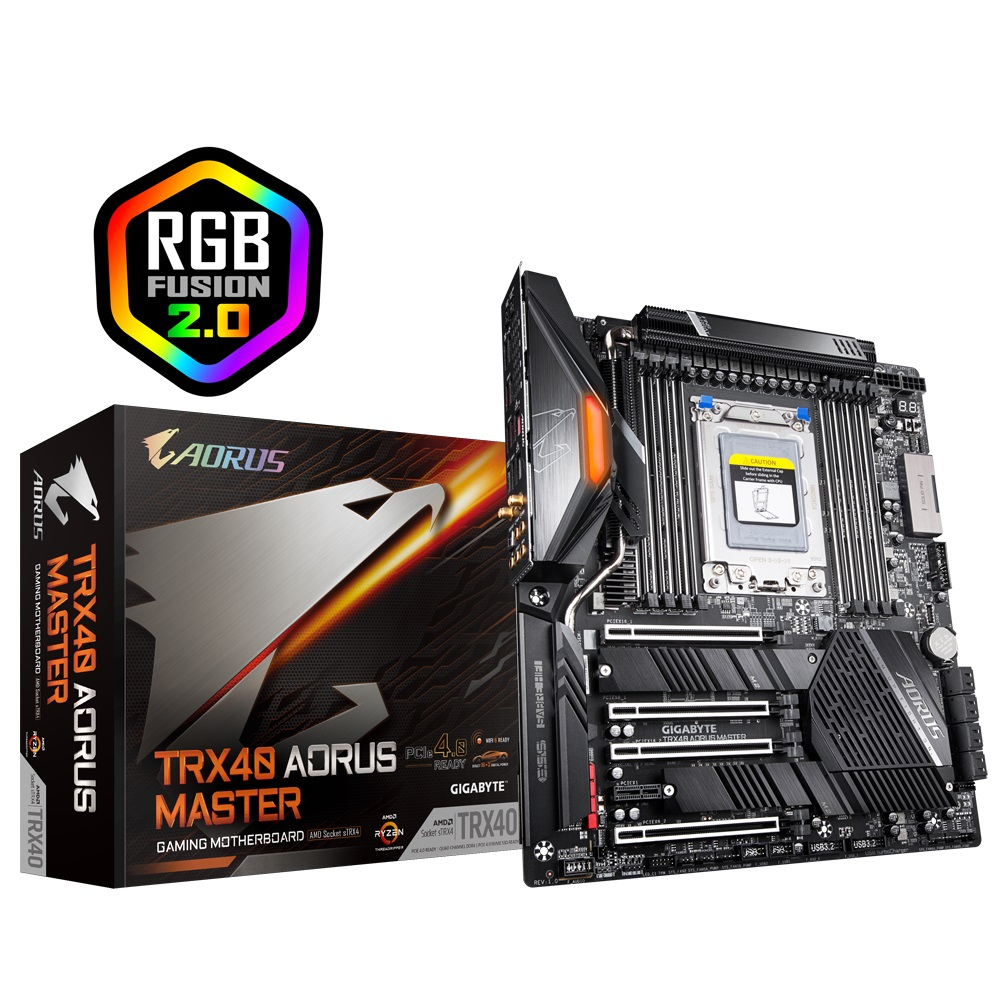

Mainboard Gigabyte TRX40 AORUS MASTER

Thương hiệu: Gigabyte
Mã sản phẩm: ABGI_TRX40_AORUS_MASTER
Tình trạng: Liên hệ
Bảo hành: 36 tháng
Liên hệ kinh doanh
CHÍNH SÁCH MUA HÀNG
Thông sốGiá trị
Hãng sản xuấtGIGABYTE
Loại sản phẩmMAINBOARD
ChipsetAMD TRX40
SocketAMD Socket sTRX4:
Support 3rd Generation AMD Ryzen™ Threadripper™ processors
Khe RAM tối đa8
Kiểu RAM hỗ trợDDR4
Dung lượng RAM tối đa256GB
Tốc độ buss RamQuad Channel memory architecture
Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Ổ cứng hỗ trợIntegrated in the CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Integrated in the Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Lưu trữ1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P) 8 x SATA 6Gb/s connectors 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Khe PCI2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 4.0 standard.)
USBIntegrated in the CPU:
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Integrated in the Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Cổng kết nối bên trong1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x GIGABYTE add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x power button
1 x reset button
2 x BIOS switches
2 x temperature sensor headers
1 x Clear CMOS jumper
Voltage Measurement Points
Cổng I/O phía sau1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
5 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
LAN1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN)
1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN)

Intel® Wi-Fi 6 AX200
Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Âm thanh1 x Realtek® ALC4050H codec+1 x Realtek® ALC1220-VB codec (Rear audio)
1 x Realtek® ALC4050H codec+1 x ESS SABRE9218 DAC chips (Front audio)
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Đồ họaSupport for NVIDIA® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
Operating System SupportSupport for Windows 10 64-bit
Điều khiển I/OiTE® I/O Controller Chip
BIOS. 2 x 128 Mbit flash
. Use of licensed AMI UEFI BIOS
. Support for DualBIOS™
. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Kích thướcE-ATX Form Factor; 30.5cm x 26.9cm
Bảo hành36 tháng
