Thông số sản phẩm
Ram hỗ trợ | 2 x DDR4 DIMM DDR4 2933/2666/2400/2133 MHz max 64GB |
Kiểu Sockets Supported | Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron |
Chipset | Intel® H410 Express Chipset |
Đồ họa | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz |
khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 2x PCIe 3.0 x1 |
LAN - WiF | Realtek® GbE LAN chip (1000/100 Mbit) |
Âm thanh | Realtek® ALC887 codec |
Operating System Support | Support for Windows 10 64-bit |
Cổng I / O phía sau | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
Cổng I/O ở trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
Chuẩn thiết kế ATX | Micro ATX Form Factor; 22.6cm x 18.5cm |
Cổng lưu trữ / kết nối | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4x SATA 6Gb/s 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
Bảo hành | 36 tháng |
Phản hồi khách hàng

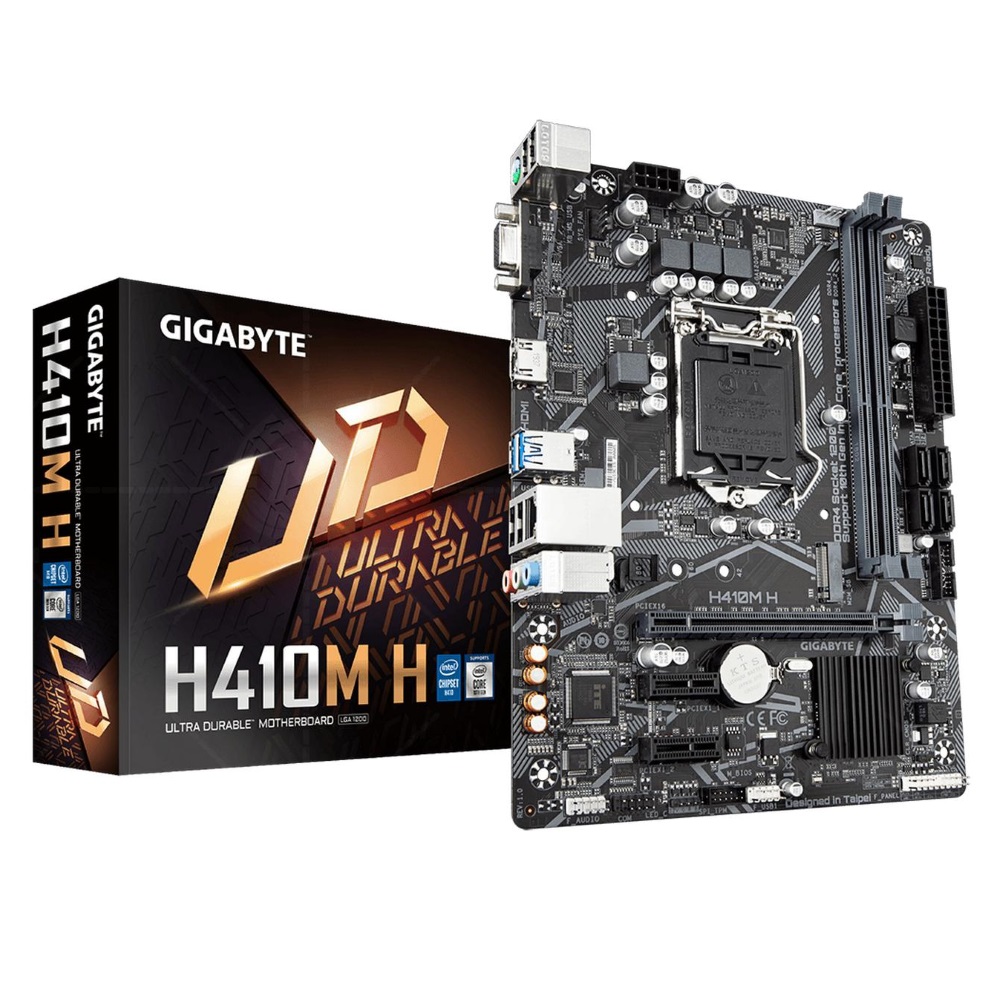

Mainboard Gigabyte H410M-H
- Giá bán: Liên hệ
