| Thông số | Giá trị |
|---|---|

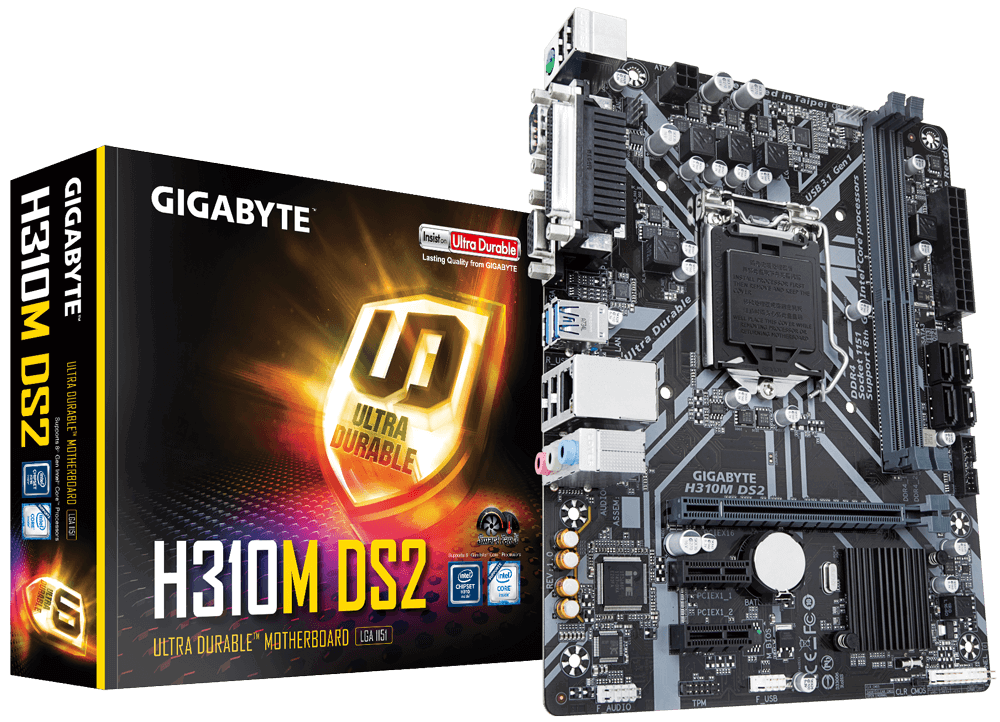

| Hãng sản xuất | GIGABYTE |
| Loại sản phẩm | MAINBOARD |
| Chipset | Intel® H310 Express Chipset |
| Socket | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
| Khe RAM tối đa | 2 |
| Kiểu RAM hỗ trợ | DDR4 |
| Dung lượng RAM tối đa | 32GB |
| Tốc độ buss Ram | Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. |
| Ổ cứng hỗ trợ | 4 x SATA 6Gb/s connectors |
| Lưu trữ | 4 x SATA 6Gb/s connectors |
| Cổng xuất hình | 1 x D-Sub port |
| Khe PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| USB | 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Cổng kết nối bên trong | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| Cổng I/O phía sau | 1 x PS/2 keyboard/mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Âm thanh | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| Đồ họa | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz Maximum shared memory of 1 GB |
| Operating System Support | Support for Windows 10 64-bit |
| BIOS | 1 x 128 Mbit flash, AMI UEFI BIOS |
| Kích thước | Micro ATX Form Factor; 22.6cm x 17.4cm |
| Bảo hành | 36 tháng |
