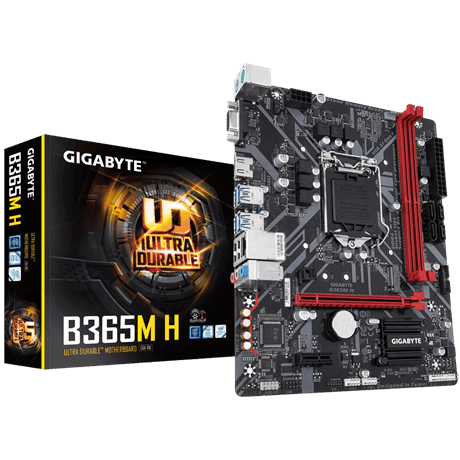

Mainboard Gigabyte B365M-H

Thương hiệu: Gigabyte
Mã sản phẩm: 7754-201027
Tình trạng: Liên hệ
Bảo hành: 36 tháng
Liên hệ kinh doanh
CHÍNH SÁCH MUA HÀNG
Thông sốGiá trị
Hãng sản xuấtGIGABYTE
Loại sản phẩmMAINBOARD
ChipsetIntel® B365 Express Chipset
SocketSupport for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Khe RAM tối đa2
Kiểu RAM hỗ trợDDR4
Dung lượng RAM tối đa32GB
Tốc độ buss RamDual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
Ổ cứng hỗ trợ1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory
Lưu trữ1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory
Cổng xuất hình1 x D-Sub port
1 x HDMI port
Khe PCI1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
USB6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Cổng kết nối bên trong1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
Cổng I/O phía sau1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x D-Sub port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
LANRealtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanhRealtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Đồ họa1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU
Operating System SupportSupport for Windows 10 64-bit
Kích thướcMicro ATX Form Factor; 22.6cm x 18.5cm
Bảo hành36 tháng
