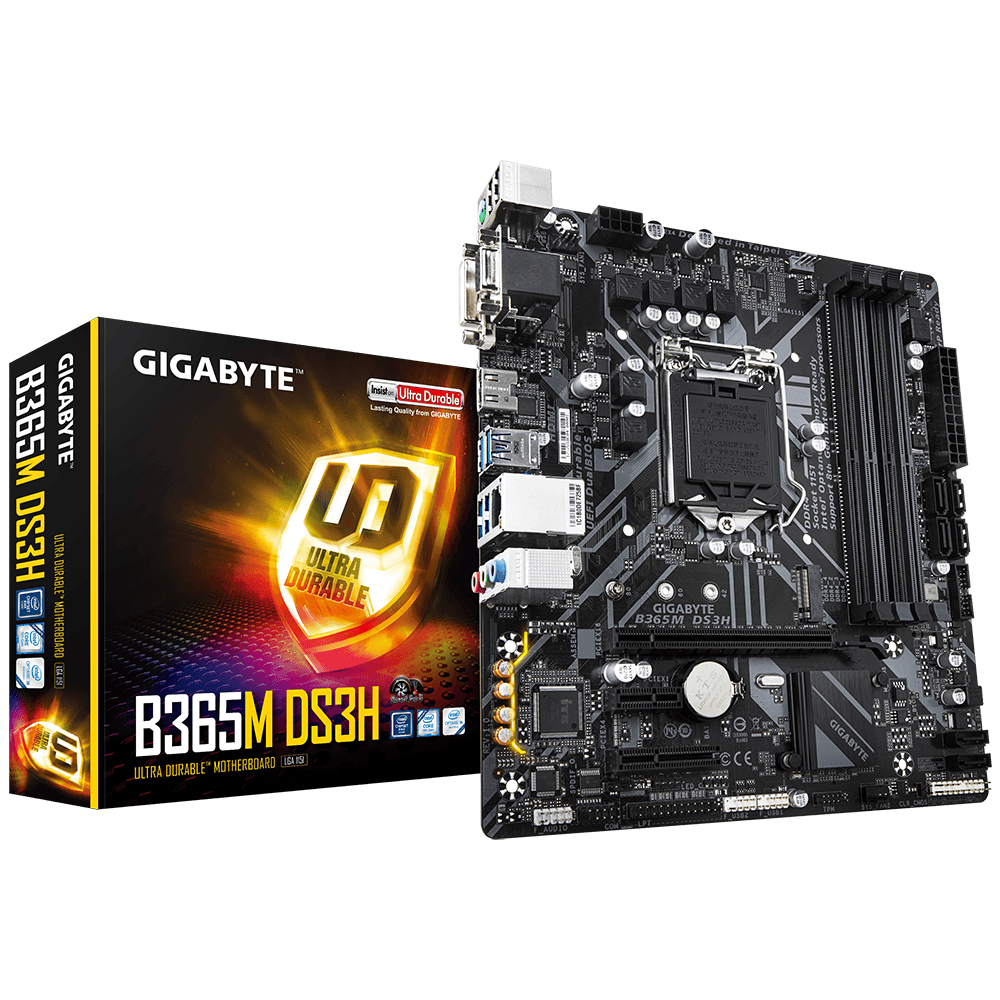

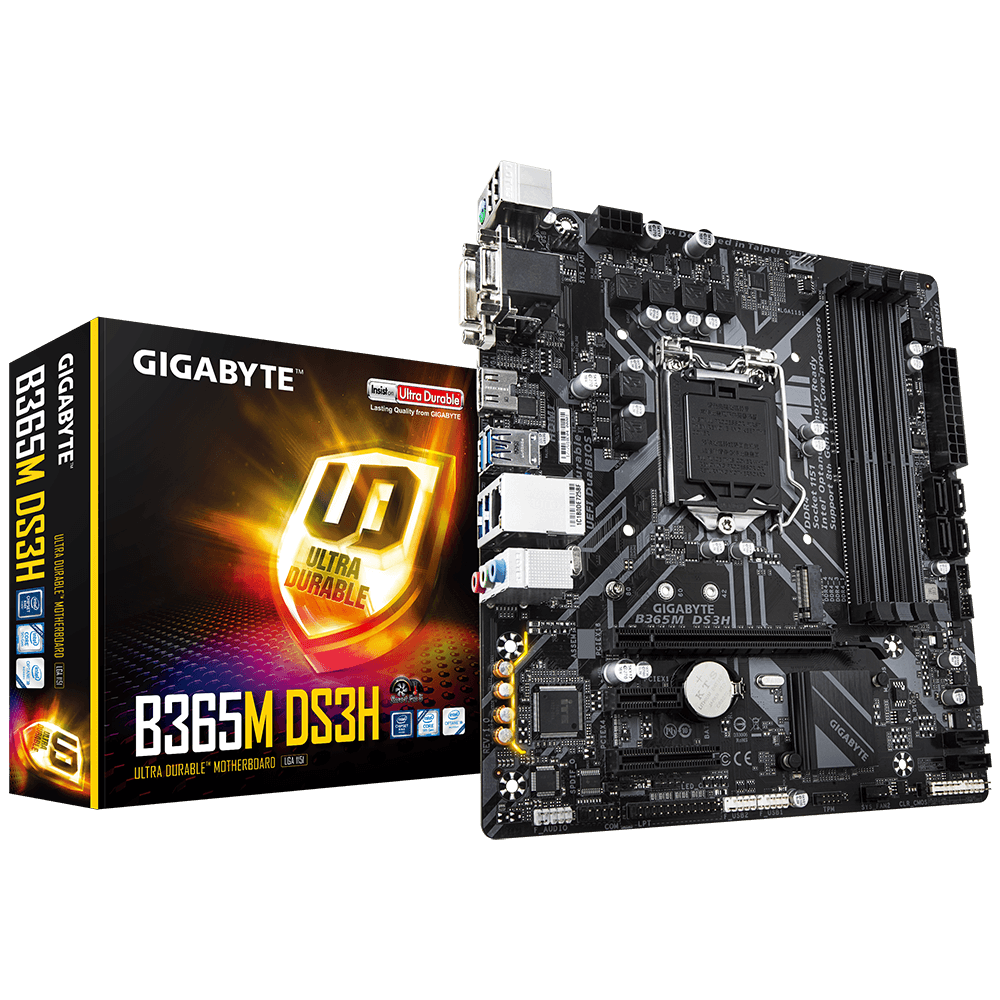

Mainboard Gigabyte B365M-DS3H

Thương hiệu: Gigabyte
Mã sản phẩm: ABGI_B365M_DS3H
Tình trạng: Liên hệ
Bảo hành: 36 tháng
Liên hệ kinh doanh
CHÍNH SÁCH MUA HÀNG
Thông sốGiá trị
Hãng sản xuấtGIGABYTE
Loại sản phẩmMAINBOARD
Hệ điều hànhWindows® 10 64-bit
ChipsetIntel® B365 Express Chipset
SocketSupport for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Khe RAM tối đa4
Kiểu RAM hỗ trợDDR4
Dung lượng RAM tối đa64GB
Tốc độ buss RamDual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install a 9th and 8th Generation Intel® Core™ i9/i7/i5 processor.
Ổ cứng hỗ trợ1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Lưu trữ1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors
Cổng xuất hình1 x D-Sub port
1 x DVI-D port
1 x HDMI port
Khe PCI1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x4 slot
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
USB6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Cổng kết nối bên trong1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Cổng I/O phía sau1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
LANRealtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanhRealtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Đồ họaIntegrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Operating System SupportSupport for Windows 10 64-bit
BIOSUEFI BIOS
Kích thướcMicro ATX Form Factor; 22.6cm x 20.5cm
Bảo hành36 tháng
