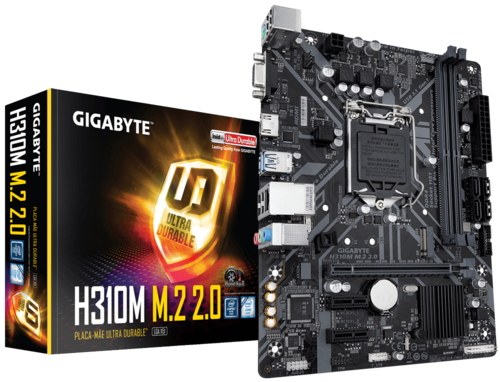

MẠCH CHÍNH VI TÍNH GIGABYTE H310M M.2 2.0

Intel H310 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen2 x2 M.2, HDMI 1.4, D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready

Supports 9th and 8th Gen Intel^® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4
8-Channel HD Audio with High Quality Audio Capacitors
Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
HDMI 1.4, D-Sub Ports for Multiple Display
CEC 2019 Ready, Save Power With a Simple Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
All new GIGABYTE™ APP Center, simple and easy use
Anti-Sulfur Resistors Design

Xem thêmThu gọn

Thông số	Giá trị
Hãng sản xuất	GIGABYTE
Loại sản phẩm	MAINBOARD
Chipset	Intel® H310 Express Chipset
Socket	Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Khe RAM tối đa	2
Kiểu RAM hỗ trợ	DDR4
Dung lượng RAM tối đa	32GB
Tốc độ buss Ram	Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
Ổ cứng hỗ trợ	1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors
Cổng xuất hình	1 x D-Sub port 1 x HDMI port
Khe PCI	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
USB	4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Cổng kết nối bên trong	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Cổng I/O phía sau	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanh	Realtek® Audio codec High Definition Audio 2/4/5.1/7.1-channel
Đồ họa	Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB
Operating System Support	Support for Windows 10 64-bit
BIOS	1 x 128 Mbit flash, AMI UEFI BIOS
Kích thước	Micro ATX Form Factor; 22.6cm x 17.4cm
Bảo hành	36 tháng
