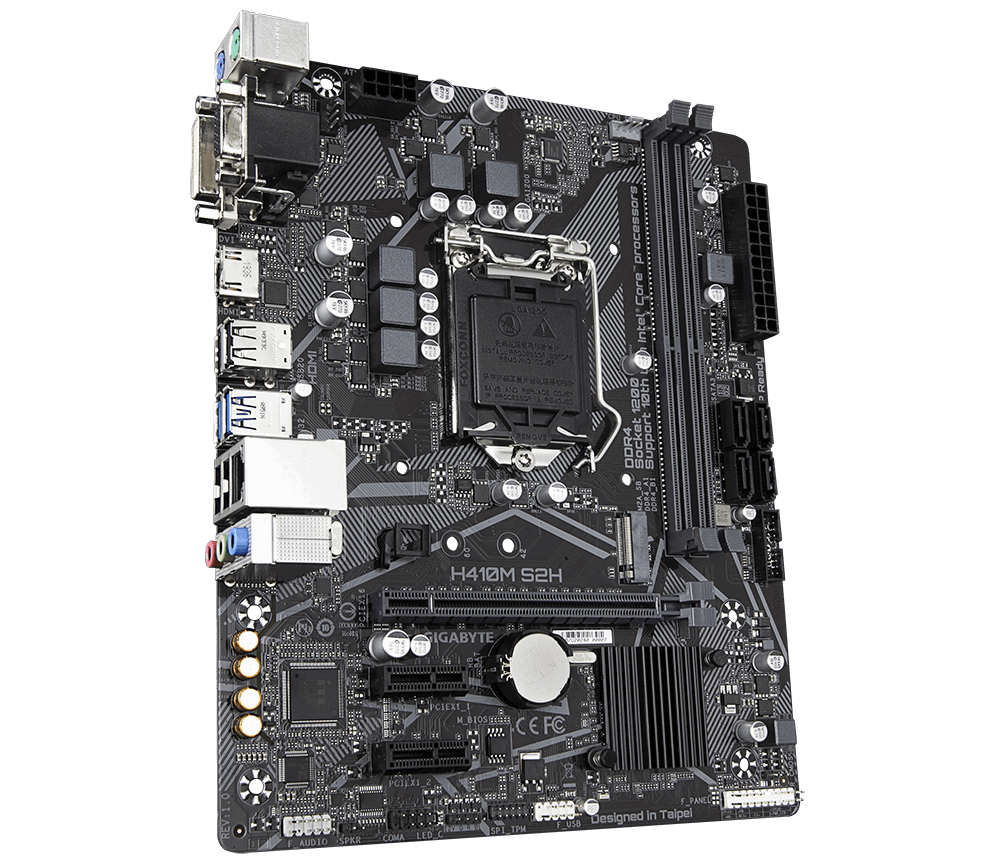

MẠCH CHÍNH VI TÍNH GIGABYTE GA H410M S2H V3
| Thông số | Giá trị |
|---|---|
| Hãng sản xuất | GIGABYTE |
| Loại sản phẩm | MAINBOARD |
| Chipset | Intel® H510 Express Chipset |
| Socket | Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU |
| Khe RAM tối đa | 2 |
| Kiểu RAM hỗ trợ | DDR4 |
| Dung lượng RAM tối đa | 64GB |
| Tốc độ buss Ram | Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Ổ cứng hỗ trợ | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| Cổng xuất hình | 1 x D-Sub port 1 x DVI-D port 1 x HDMI port |
| Khe PCI | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 3.0 standard.) |
| USB | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Cổng kết nối bên trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Cổng I/O phía sau | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN | Gigabit Ethernet Chip (1 Gbps/100 Mbps) |
| Âm thanh | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Đồ họa | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512 MB |
| Operating System Support | Support for Windows 10 64-bit |
| Kích thước | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Bảo hành | 36 tháng |
